Kowa will produce a high-quality heater that has superior durability, electrical insulation properties, high efficiency, and toughness.

Kowa will prepare many varieties like extensive sizes and the voltages, etc. and meet customer's needs!

Feature

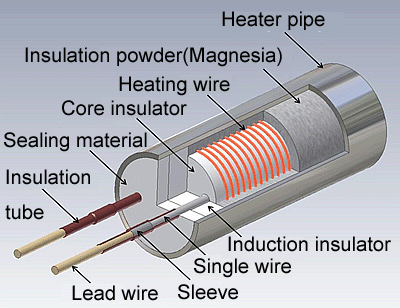

Structure

Request for consideration or quotation

Thermal efficiency is high

We use magnesium oxide superior in thermal conductivity between heater pipe and heating wire.

Toughness that endures shock

It is structure that endures mechanical vibration and shock with a stainless steel (SUS304) seamless pipe in a heater pipe.

Long service life

We use a chrome-nickel steel alloy line with the results for a heating wire, and use magnesium oxide superior in the electrically insulative performance in the high temperature for insulation powder.

Stable insulation properties

We use magnesium oxide superior in the electrically insulative performance in the high temperature and use high-density insulation sealing material for the lead wire pulling out.

Use

The usage that makes the hole for the thing heated by the hot plate, the molding die, the hot plate for the welding seal, and the roller, etc., inserts the heater, and heats it is general, but is also used as liquid heating.

Shape and dimension of standard goods

The lead wire has single wire and twist wire.
We can produce the length freely.

The follwing table is a reference table as standard goods.
We can produce outside diameter(φD), full length(Lmm), voltage(V), and capacity(W) other than the description freely too.

Standard goods (Single wire) table Standard goods (Twist wire) table

Special purpose item

It is possible to prepare for special specifications of the flange type, the metallic cap type, built in thermocouple type, and the temperature distribution, etc.

Standard goods (Single wire)

Voltage (V)	Outside diameter (φD)	Full length (Lmm)	Capacity (W)
80	8	120	100
100	6	55	50
		56	80
		58	80
		80	80
		90	50
		95	65
		95	80
		100	80
	8	70	80
		90	80
			130
			150
		100	120
		120	100
		120	120
		270	160
	10	100	120
	12	60	125
116	12	40	60
		60	80
		60	100
		80	100
			120
			150
		100	150
		100	180
		120	200
		130	200
		140	200
		160	250
		180	350
		200	350
		220	350
		240	400
		260	450
		280	500
		300	500
		320	550
		340	600
		360	650
		380	650
		400	700
		400	1200
		440	800
		460	700
		550	1200
	12.6	50	80
		75	110
		85	130
		155	300
		225	370
		410	730

Voltage (V)	Outside diameter (φD)	Full length (Lmm)	Capacity (W)
116	14.8	105	200
	16	40	80
	16	60	100
	17.5	75	150
		80	180
		90	180
		100	250
		102	246
		110	230
		110	250
		120	180
		120	250
		125	220
		125	450
		130	180
			250
			280
		135	180
		140	500
		145	320
		155	300
		160	180
		160	360
		170	375
	20	194	612
120	12.6	80	120
		90	140
		120	200
127	12	40	60
		120	200
		200	350
		220	350
		260	450
		280	500
200	6.5	240	120
	11.8	830	1200
	12	280	1200
	12	400	1500
220	6	100	100
	12	100	350
		145	500
		199	700
		350	460
		830	1200
	12.6	160	200
230	12	120	400
		140	300
		180	450
		220	400
		440	1000
	17.5	220	1000
	17.5	430	1500

Standard goods (Twist wire)

Voltage (V)	Outside diameter (φD)	Full length (Lmm)	Capacity (W)
50	17.5	110	250
100	7.8	130	150
	7.8	150	150
	8	40	30
	8	50	150
	9.8	80	60
		85	100
		90	100
		90	120
		110	100
			120
			150
		125	150
		130	150
		135	100
			120
			150
			180
			200
		140	150
		150	100
			150
			180
			200
		155	200
		180	200
		190	200
	10	40	90
		60	60
		200	500
	11.8	85	200
		110	250
		150	250
	12	30	80
		35	100
		100	300
		150	250
		150	350
		180	200
		180	250
		200	250
	13	120	180
	14.8	150	250
		150	350
		205	300
			350
			400
			450
		210	500
		210	600
		220	600
		235	450
		240	500
		245	350
			450
			550
116	12	275	250
		280	500
		300	500
		320	550
		340	600
		360	650
		380	650
		400	1000
	15	350	700
	20	60	240
	20	140	350
127	6	60	45
	12	40	60
		60	80
		80	100
		80	150
		100	150
		120	200
		130	200
		140	200
		160	250
		180	300
		200	350
		220	350
		240	400
		260	450
		260	600
		300	500
		320	550
		360	650
		380	650
		400	700
		440	800
		460	800
		550	1200
	17.5	270	950
200	8	150	200
	8	288.5	40
	9.8	90	120
		100	180
		110	120
		110	150
		130	150
		135	150
		140	180
		150	150
		165	150
		180	350
		203	350
	10	80	80
		210	250
		300	800
		315	325
	11	150	150
	11.8	300	840
	12	60	300
	12	80	120
200	24.5	570	1000
		570	1300
		580	1200
		580	1300
		630	1200
		675	1200
		720	1200
		730	1200
	29.5	520	1000
	29.5	600	1300
	31.5	280	1000
		300	1300
		340	1250
210	12.6	250	500
220	6	100	150
	6	150	150
	9.8	110	150
	9.8	135	150
	10	50	120
		60	130
		105	300
		150	300
	13	105	250
		145	300
		190	350
	14.8	205	350
		205	450
		265	450
		275	450
		280	600
		300	600
		435	750
	15	80	300
	16	60	200
		87	200
		100	200
		110	200
		125	250
		125	290
		145	290
		150	300
			350
			360
		160	300
		165	300
		180	400
		190	300
			330
			350
			370
			400
		200	250
			400
			450
			460
		215	500
		220	350
		220	450
			500
			550

Voltage (V)	Outside diameter (φD)	Full length (Lmm)	Capacity (W)
100	14.8	250	500
		255	450
		260	250
		280	450
		300	450
			500
			600
		400	800
		500	1000
	16.5	130	250
	16.8	125	400
		180	400
		190	400
		220	400
		220	600
		270	400
		330	400
			500
			600
		332	400
		332	550
		340	700
	24.5	115	350
110	12	40	90
	12.6	100	120
		130	20
		200	400
		350	600
	14.8	205	350
	17.5	250	750
		250	750
		270	750
		450	1750
	25	107	350
115	12	140	200
116	12	40	60
		50	60
		60	80
		60	100
		80	100
			150
			200
		100	150
		100	170
		120	200
		130	200
		140	200
		145	200
		150	280
		160	250
		160	375
		180	300
		200	350
		220	350
		240	400
		260	450
200	12	100	350
		190	800
		240	400
		665	1000
	13	105	250
	13	145	300
	14	45	80
	14.8	150	500
		205	350
			450
			500
		225	450
		230	350
		235	450
		245	450
		245	500
		250	1300
		255	350
		255	450
		265	450
		275	450
		300	300
			450
			500
			600
		400	800
		500	1000
		600	1000
		640	1000
	15	50	150
	15	350	700
	16	100	350
	16	750	1000
	16.8	180	400
		280	600
		340	700
	17.5	480	1750
	19.8	125	400
		185	1000
		260	500
		340	1250
		340	2000
		380	1200
	19.9	130	500
	20	170	580
	24.5	100	500
		200	850
		250	500
		330	1200
		340	1000
		350	800
		470	1000
		480	1250
		500	1000
		500	1200
		510	800
		525	1200
220	16	225	450
		225	500
		230	370
		245	500
		270	375
		280	600
		290	600
		290	700
		300	370
			650
			800
		305	500
		330	550
		345	600
		350	750
		380	750
		390	800
		400	370
			700
			850
		420	750
		420	800
		435	780
		440	1150
		450	950
		450	1500
		460	800
		480	1000
		480	1600
		495	1050
		560	1150
		580	1250
		605	1300
		620	1300
		635	1400
		650	1250
		680	1400
		690	1450
		695	1500
		730	1600
	17.5	100	280
		100	310
		420	1200
	19	650	700
	19.8	150	400
	20	150	400
		320	1000
		350	1000
		400	1000
	24.5	300	600
	25	110	350
230	10	80	110
	12	140	300
	12	180	450
	17.5	180	600
		340	1200
		410	1420
