Hot plate
Hot plate
It is possible to correspond from the small size(300 x 300) to large size(2570 x 2270) as a hot plate for various examinations.

It excelled in the temperature uniformity, and the hot plate of lightness, the thin type, and energy saving were achieved so far.

Contents
* Feature

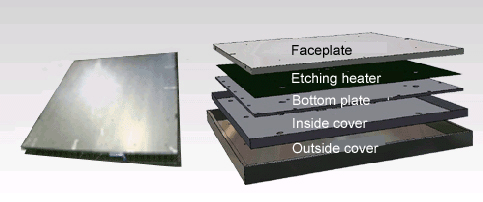

* Structure



* Large size, energy saving, lightness, and thin type hot plate.
The temperature uniformity of hot plate (faceplate) improves moreover!


Temperature of faceplate [°C] Temperature range [°C]
   60 ~ 80 R<1.2
  80.1~100 R<1.5
100.1~130 R<2.0
130.1~150 R<2.5
150.1~180 R<3.0


* Making large size hot plate (KWL90) "Lightness, thin type, and energy saving" is achieved!

Lightness 250 [kg]
Thin 60 [mm]
Energy saving 23 [kW] (180[°C] at stability)


* A large size hot plate is made efficient by polytomy zone control.
Hot plate
Use

Glass baking for liquid crystal, drying, examination with electronic parts,
various examination equipments, heating for rubber formation, a basic solder,
the preheat processing of plastic materials, and metal mold heating when plastic is molded, etc.
Main specifications

  Standard goods Make to order
The maximum size that can be produced 600 x 600 ~2570 x 2270
(Large size is also more possible.)
Power-supply voltage Single phase AC 200/220V or three phase AC 200/220V
Heater capacity Different according to shape * Different according to shape
* Customer's specification is also possible
Heating method Etching mica heater * Etching heater
* Cartridge heater
* Casting heater
Plate materials Aluminum * Aluminum
* Stainless steel
* Iron
* Copper
Plate surface treatment Hard anodizing * Alumite
* Hard anodizing
* Tufram
* Antistatic fluorine coating
* Electroless nickel plating, etc.
Flatness Smooth Accordance with arrangement
Surface roughness 25S Accordance with arrangement
Maximum use temperature 250 [°C] * Aluminum        : 250 [°C]
* Iron                 : 350 [°C]
* Stainless steel : 450 [°C]
Temperature uniformity ±2 [°C] at 150 [°C]
(Measument point: 5 point)		 Accordance with arrangement
Other --- * Adsorption hole processing
* Lift pin hole processing
* Proximity processing, etc.
Controller There is conformity product Accordance with arrangement

Standard goods

Part number Faceplate dimension [mm] Outside dimension [mm] Heater capacity [kW]
KWL016 300 x 300 330 x 330 x 45 1.0
KWL021 400 x 400 430 x 430 x 45 1.8
KWL027 500 x 500 530 x 530 x 45 2.7
KWL032 600 x 600 630 x 630 x 45 4.0

Make to order

Part number Faceplate dimension [mm] Heating object (Glass) dimension [mm] Note
KWL025 530 x 530 480 x 480
KWL028 600 x 500 550 x 450
KWL040 830 x 730 780 x 680
KWL043 950 x 750 880 x 680
KWL045 980 x 780 900 x 700
KWL050 1050 x 950 950 x 850
KWL063 1350 x 1200 1280 x 1120
KWL090 1940 x 1640 1800 x 1500 G6
KWL117 2320 x 2020 2250 x 1950 G7.5
KWL131 2570 x 2270 2500 x 2200 G8.5


It is possible to produce it with one custom product besides standard and the order production puroducts!
